CMO-308121-A

Kocsis Technology

CMO-308121-A

Call us at +1-281-861-2600 for pricing of this item

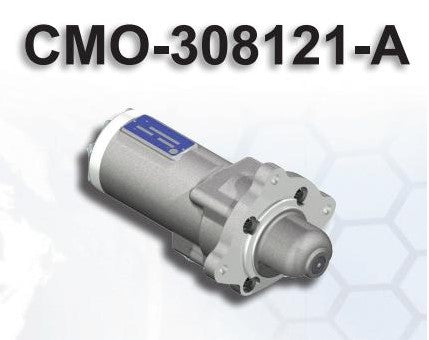

CMO-308121-A Hydraulic Starter

Flange type: SPECIAL

Flange to ring gear dimension: 0.098"

Number of teeth: 12

Diametral pitch: 8/10

Pinion outside diameter: 1.825"

Pressure angle: 20°

Rotation: Clockwise

Motor housing: Aluminum

Pinion housing: Aluminum

Barrel: Steel

Piston: Bronze Alloy

Number of pistons: 7

Displacement: 0.50 in³/REV

Speed range: 0-7000 RPM

Drive type: Inertia

Maximum working pressure: 3000 PSI

Duty cycle: Intermittent

Maximum torque: 15 Ft-lbs

Weight: 11.0 lbs

Overall volumetric efficiency: 92%

Recommended fluid: Red hydraulic fluid (MIL-H-5606)



  • Model: CMO-308121-A
  • Manufactured by: Kocsis Technology
