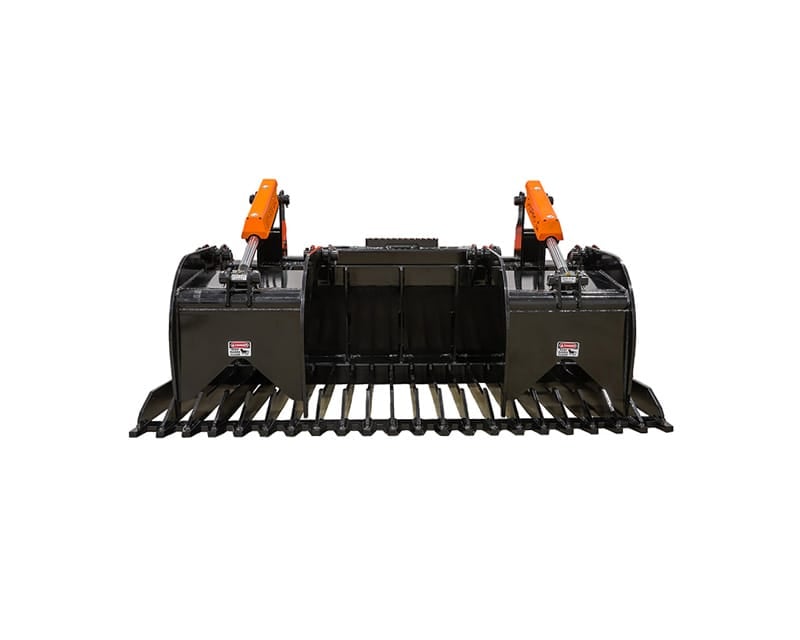

XHD Rock Grapple Skid Pro Attachments
XHD Rock Grapple Skid Pro Attachments

XHD Rock Grapple Skid Pro Attachments

✓ Lifetime warranty

✓ Price match gurantee

Select an option to add this to your cart.

Rock Grapple - XHD

  • 72” XHD frame & bucket design weighs in at 1,239 lbs.
  • 3” tine spacing & design delivers top versatility
  • Grapple geometry delivers 85% more clamping force
  • Industrial cylinders; 2” bore, 10” stroke, 1 ¼” rod
  • Fully boxed 360-degree, steel cylinder guards
  • XL greaseable pins at every pivot point
  • High tensile 80,000 psi steel and 5/8” thick tines
  • 0% financing available - no interest if paid in full within 12 months.

66”/72”/78”/84” Models | 36” Depth | 21.5” Height | 21–27 Tines @ 3” Spacing | 5/8” Tines | 32.5” Grapple Opening

Skid Pro’s skid steer rock grapple is designed to handle the toughest loads like rocks, debris, logs, and other heavy materials. Engineered with high-tensile, 80,000 psi steel and reinforced with gusseted tines, this rock grapple bucket is designed to withstand intense conditions. It features a 3” tine spacing for versatility, industrial cylinders for powerful clamping force, and a serrated cutting edge to assist with digging. The open bucket design allows dirt to fall through, making it perfect for sifting and clearing debris, rocks, and brush. Skid Pro’s rock grapple bucket offers strength and efficiency for demanding work environments.

Specifications

MODEL

66”

72”

78”

  84″
Overall Bucket Width (Inches)

67.6

74.3

80.9

87.5
Bucket Depth (Inches)

36″
Bucket Height (Inches)

21.5″
Number of Tines (With Sides)

21

23

25

27
Space Between Tines (Inches)

3″
Tine Thickness (Inches)

5/8″
Grapple Jaw Opening (Inches)

32.5″
Approximate Weight (Pounds)

1206

1239

1333

1397

Features

Industrial Design

  • ¾” thick front cutting edge delivers unmatched durability while gusseting tines together
  • XL gusseted independent top grapples with industrial cylinders for unmatched durability
  • High-strength, 5/8” laser cut 80,000 psi rated steel tines are built to last and thrive in tough conditions
  • Oversized pins and greaseable bushings at all pivot locations gives longevity & a smooth cycle
  • HD cylinder guards are fully boxed 360 degrees for maximum cylinder & hose protection
  • Fully protected hose routing reduces the likelihood of down time or damage in extreme environments

Operator Ease

  • Oversized safety step for easier cab access

Options

  • 4 different width options, 66”, 72”, 78” & 84” available
  • 1 Year Extended Protection Plan
  • 2 Year Extended Protection Plan
