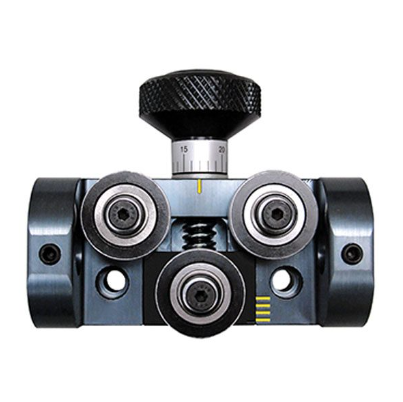

The Wire Wizard® Small Steel Wire Straightener is designed for straightening or recasting steel wire sizes .035 to .062. The main body is constructed of aluminum, making our straighteners some of the lightest in the market. All models are equipped with a locating calibration on the face of the unit and a fine adjustment scale on the tension knob. This results in an extremely fast and accurate setting of wire cast. Our full range of fittings and inlet guides guarantee a trouble-free fit for any application or system.
- For steel wire sizes .035 to .062 (order WSS-100-A for aluminum wire)
- Dimensions: 3.74” W x 3” H x 1.63” D (95mm W x 78mm H x 41.3mm D)
- Weight: 1 lb (0.45 kg)
- Features U-groove drive rolls designed for steel wire applications
Check below P/N for wire straightener fittings:
- A-1QD-12 Fitting with male adapter for disconnect
- A-1QD-12-5/32 Fitting for large wire (.25ID) with male adapter
- A-1LN-S-12 Male 1/4 NPT threaded fitting
-
A-1LN-S-5/32 Male 1/4 NPT threaded fitting for large wire (0.25ID)
-
