CA-500 COMMAND AIR 500 Aftercooler

Wire Wizard

CA-500 COMMAND AIR 500 Aftercooler

Call us at +1-281-861-2600 for pricing of this item

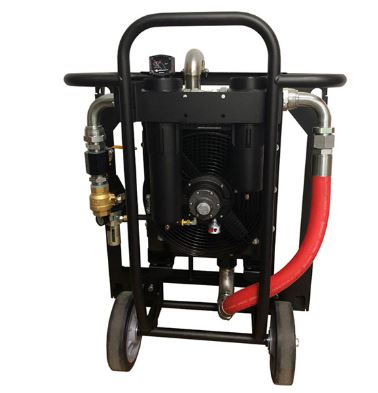

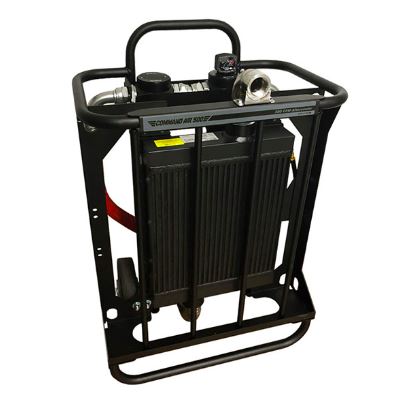

COMMAND AIR 500 Aftercooler

Engineered to handle the most demanding dry ice blasting applications, the Command Air® 500 efficiently cools, filters, and dries the hot moist air produced by diesel air compressors and supports up to two compressors and blasters simultaneously. The aftercooler features self-purging automatic drains, a robust steel frame, and airless tires for easy mobility. A high-quality coalescing grade filter (.7 micron) removes particulate, and a moisture filter efficiently removes water from the air supply, providing dry, filtered air to your equipment. This aftercooler is ideal for supplying single or tandem dry ice blasters, sandblasters, soda blasters, or any other equipment requiring cool, dry air for operation.

  • Removes air contaminants and ensures a clean, dry air supply for reliable operation of blasting equipment
  • Eliminates moisture from the air supply even in hot and humid conditions
  • It improves productivity, reduces maintenance, and lowers the operating costs of blasting equipment
  • Coalescing grade 10 (.7 micron) filter effectively removes dirt and other particulates in the air supply
  • Efficient design and large-diameter tubing maximize air flow for minimal pressure drop
  • All-pneumatic operation
  • Standard two-year warranty (excluding consumables)

COMMAND AIR 500 (Model CA-500) Specifications:

  • Pressure Rating: 250 psi MAX
  • Flow Capacity: 500+ SCFM @ 250 PSI
  • Filtration: Coalescing filter to .7 micron
  • Max Inlet Temperature: 250°F (121°C)
  • Fan Motor Supply: 25 CFM @ 35 psi MAX
  • Moisture Drainage: Self-purging, automatic
  • Dimensions: 45” (1143 mm) H x 32½” (826 mm) W x 19” (483 mm) D
  • Weight: 180 LB (82 KG)
  • Inlet Size: 1.5″ NPT F
  • Outlet Size: 1.5″ NPT F
