XHD Tine Grapple Skid Pro Attachments
XHD Tine Grapple Skid Pro Attachments

XHD Tine Grapple Skid Pro Attachments

✓ Lifetime warranty

✓ Price match gurantee

Seleccione una opción para agregar esto a su carrito.

Tine Grapple

  • No front cross member supports allow deeper tine reach
  • HD 2 ¼” tines of 1045 rolled high tensile rolled steel
  • Industrial cylinders; 2” bore, 10” stroke, 1 ¼” rod
  • Fully boxed 360-degree, steel cylinder guards
  • Durable XL 1 ¼” greaseable pins at every pivot point
  • Individual tines are bolt-in removable and replaceable
  • High strength ½” grapples and reinforced bucket frame
  • 0% financing available - no interest if paid in full within 12 months.

72”/84” Models | 40” Outside / 32” Inside Depth | 23” Height | 35” Opening | 2-1/4” Tines @ 6-1/2” Spacing

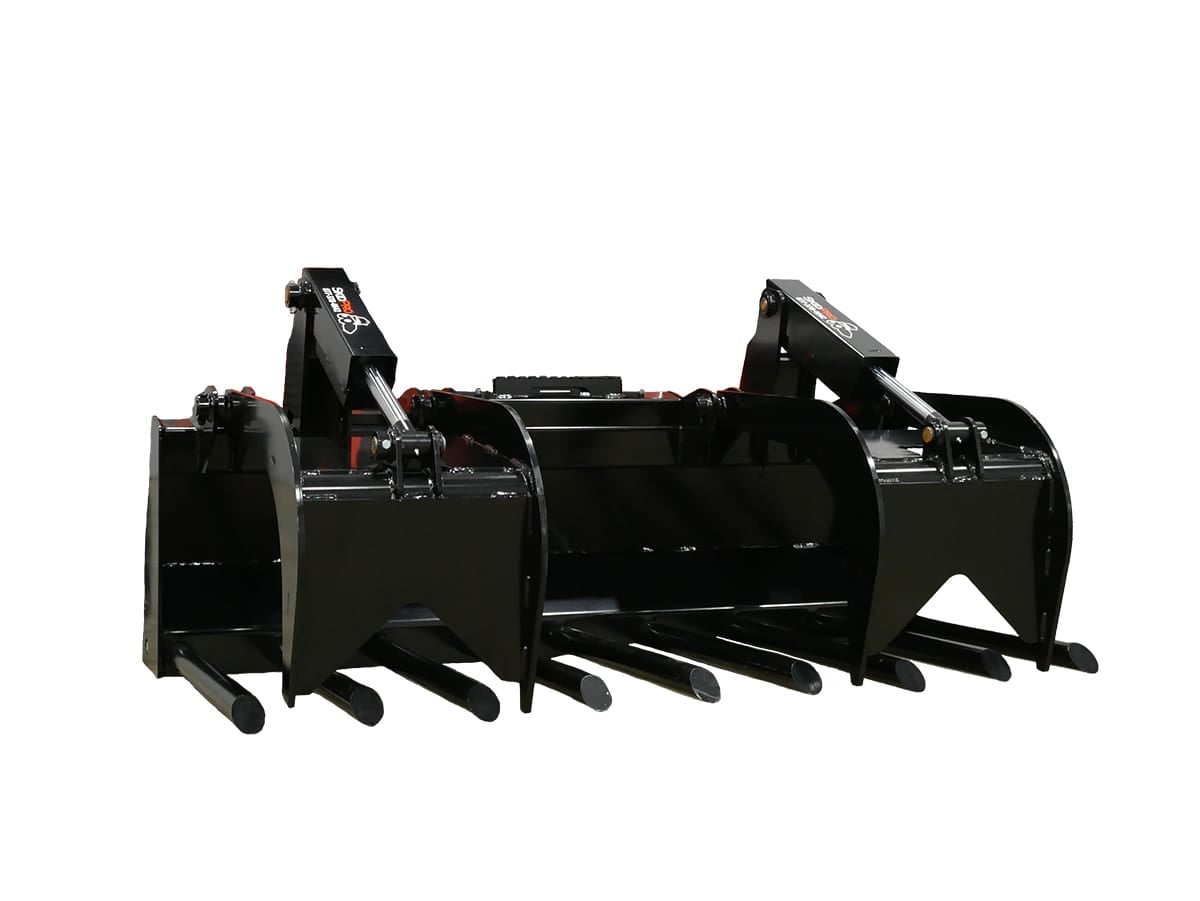

Skid Pro’s Skid Steer Tine Grapple is a robust attachment designed for superior material handling. It features no front cross-member supports, allowing for deeper tine reach and maximum efficiency. Crafted from HD 2 ¼” 1045 rolled high-tensile steel, the tines offer exceptional strength. Industrial cylinders with 2″ bore and 10” stroke ensure powerful operation, while fully boxed, 360-degree steel cylinder guards provide protection in tough environments. Durable XL greaseable pins, replaceable tines, and reinforced bucket frames enhance the longevity of the skid steer tine grapple. Perfect for heavy-duty applications, this grapple ensures reliable performance across industries, from agriculture to construction.

Specifications

Model 72” 84”
Outside Depth 40” 40”
Inside Depth 32” 32”
Height 23” 23”
Opening 35” 35”
Tine Diameter 2 ¼” 2 ¼”
Tine Spacing 6 ½” 6 ½”
Weight 1060 1150


Features

Industrial Design

  • Independent grapples with industrial cylinders & heavy duty cylinder guards
  • HD high capacity frame is built extra stout to handle today’s bigger skid loaders
  • Greaseable bushings at all pivot locations with oversized 1 ¼” pins for added strength
  • HD cylinder guards protect cylinder from debris and damage in extreme work environments
  • Completely protected hydraulic hose routing for better hose protection and durability

Operator Ease

  • Oversized safety step for easier cab access
  • Versatile & durable design makes it a favorite for demo contractors & recycling facilities
  • Two widths ranging from 72″-84″

Options

  • High capacity grapples for big track loaders, telehandlers & backhoes
  • 1 Year Extended Protection Plan
  • 2 Year Extended Protection Plan
