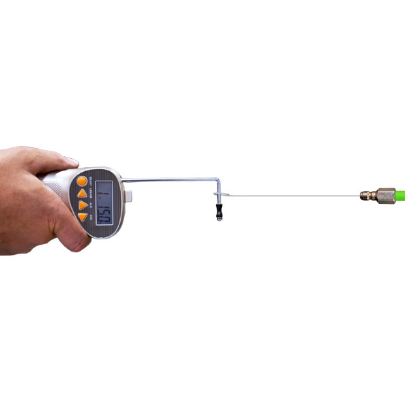

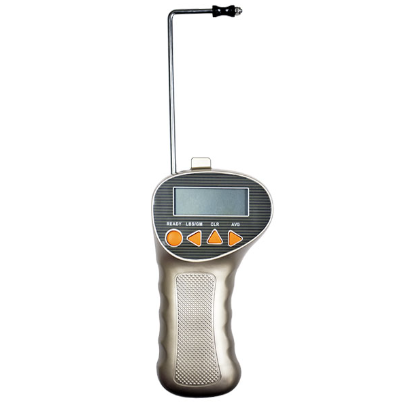

The Wire Wizard® Wire Draw Gauge is designed to accurately measure the draw weight of MIG welding wire pulling through the conduit. This allows the operator to troubleshoot wire delivery problems and check the amount of strain the wire is creating on the feed motor. Hand-held, battery powered (9-volt). Max pull weight: 12 lbs. (5.4 kg).
- Capable of averaging 10 pulls of wire, storing the largest draw
- Measures in English or metric at the touch of a button
- Easy to read 5-digit LCD display
- Ergonomic plastic housing with standard storage case
- Max pull weight: 12 lbs. (5.4 kg)
