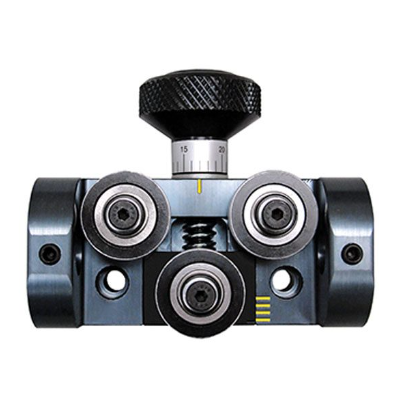

The Wire Wizard® Aluminum Wire Straightener is designed for straightening or recasting aluminum and other non-ferrous wire sizes .035 to .062. The main body is constructed of aluminum, making our straighteners some of the lightest in the market. All models are equipped with a locating calibration on the face of the unit and a fine adjustment scale on the tension knob. This results in an extremely fast and accurate setting of wire cast. Our full range of fittings and inlet guides guarantee a trouble-free fit for any application or system.
- For wire sizes .035 to .062 used for aluminum wire
- Dimensions: 3.74” W x 3” H x 1.63” D (95mm W x 78mm H x 41.3mm D)
- Weight: 1 lb (0.45 kg)
- Features V-groove drive rolls for aluminum/non-ferrous wire applications
Check below P/N for wire straightener fittings:
- A-1QD-12 Fitting with male adapter for disconnect
- A-1QD-12-5/32 Fitting for large wire (.25ID) with male adapter
- A-1LN-S-12 Male 1/4 NPT threaded fitting
- A-1LN-S-5/32 Male 1/4 NPT threaded fitting for large wire (.25ID)
- A-1C-S Delrin fitting with ceramic inlet (.20ID)
