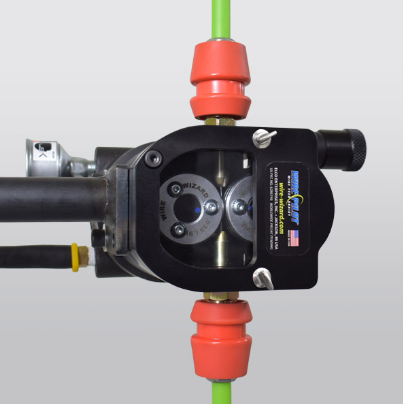

PFA-LM-20 Wire Pilot® Wire Feed Assist

Wire Wizard

PFA-LM-20 Wire Pilot® Wire Feed Assist


The Wire Pilot® Pneumatic Feed Assist (PFA) provides an economical way to help your wire feeder move wire through the conduit in applications where the wire must have minimal friction, travel a long distance or where the workload on the wire feeder must be reduced. When combined with Guide Modules, it allows the ultimate flexibility when it comes to wire delivery and wire packages can be located 150 ft (46m) or more away from the arc. Using only compressed air, this unit easily relieves several pounds of pulling force from the feed motor. Adjustable torque setting prevents “bird nesting,” commonly occurring in aluminum or light wire applications. Compatible with ferrous & non-ferrous wire. Patented design. Drive rolls are sold separately.

  • Eliminates drag coefficient inside the conduit
  • The new model includes a redesigned, more compact industrial enclosure to keep out industrial contaminants.
  • Utilizes the same inlet guides and drive rolls as the PFA-LM Feed Assist model
  • Provides a “Push-Pull” system to get wire from the source to the feeder – in other words, it functions as a slave to the wire feeder, providing a constant push on the wire to eliminate skid fiction and drive roll slippage.
  • Extends conduit life & increases arc-on time
  • It enables longer conduit runs (150 ft/46m+), centrally located wire packages, and bulk wire use in applications that normally require small spools.
  • Prevents burnbacks caused by wire feeding problems
  • Industrial enclosure prevents exposure to dust and other contaminants
  • Solves many feeding issues with large diameter wire used for SAW welding
  • Adapts to other Wire Wizard® wire delivery equipment
  • Includes filter/regulator/lubricator
